PNEUMATIC CONTROL VALVE

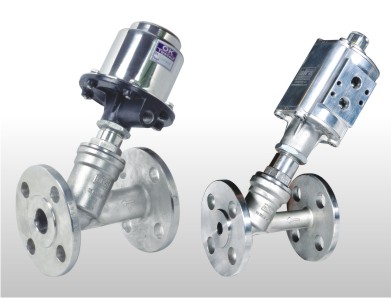

2 /2 Way Pneumatic Single & Double Acting Operated Angle Type On / Off Control Valve(N/O & N/C)

Aira

SPECIFICATIONS__________________________________
ACTUATOR DETAILS :
Body   Aluminium / S.S.304
Actuator Type   Double Acting / Single Acting
Air Connection   1/4″ BSP (NPT On Request)
Operating Pressure   4.5 to 7 BAR (1/2″ to 2″), 5 to 7 Bar (2.1/2″ to 4″)
Operating Cycles   350 to 650 Cycles / Hr.

VALVE DETAILS :
Model : SRT / ASV / SRK / TOF
Size Range : 1/2″ to 4″
Body : CF8 / CF8M / CF3M
Bonnet : CF8 / CF8M / CF3M
Pressure : up to 10 Bar
Temperature : up to 220°C
Leakage : As per ANSI B 16, 16.104 Leakage Class VI Shut off
tight / Bubble tight
End Connection : Screwed End / Flanged End
