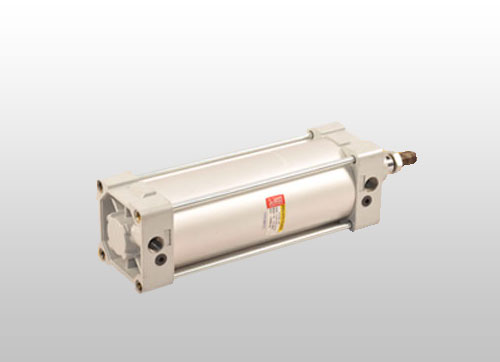

Pneumatic Cylinders - VNC Model

VNC S-20 / S-21

SPECIFICATIONS________________________________________________________
“VNC  S-20 / S-21” Model (Round Barrel) Double / Single acting Pneumatic Cylinders as per ISO 15552 & VDMA 24562 Standers  with Adjustable Cushioning at Both Ends.

TECHNICAL DATA _______________________________________________________
Bore 32 to 200 mm
Stroke 25 to 1000 mm (2000 mm available on your request)
Barrel Aluminum Hard Anodized
End Cover Aluminum Press. Die Cast
Seals Polyurethane / Buna – N / Viton
Temperature 80°/200° C
Mounting Available on request
.
