Pneumatic Actuators

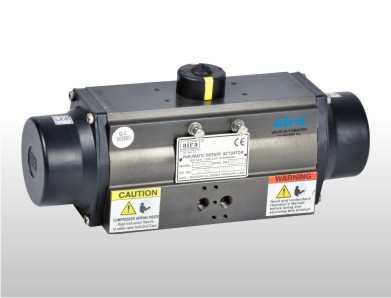

Pneumatic Rotary Actuator Single Acting As Per ISO 5211
SPECIFICATIONS____________________________________________
METHOD OF TRANSMISSION : RACK AND PINION TYPE
ACTUATION : SINGLE ACTING
BODY : EXTRUDED ALUMINIUM HARD ANODIZED
CAPS AND RACK : ALUMINIUM PRESSURE DIE CAST
PINION : EN 8
SEALS : BUNA – N / Viton
AIR PRESSURE : NORMAL AIR SUPPLY PRESSURE: 4KG/CM² MAX, AIR SUPPLY PRESSURE: 7KG/CM²
ACTUATOR DESIGN : ISO 5211 (ACTUATOR CAN BE QUICKLY AND EASILY MOUNTING)
ROTATION : 90° / 180° ROTATION
TORQUE : UP TO 6356 NM


PNEUMATIC ROTARY ACTUATOR DOUBLE ACTING
MORE >>

PNEUMATIC ROTARY ACTUATOR SINGLE ACTING
MORE >>

PNEUMATIC ROTARY ACTUATOR STAINLESS STEEL
MORE >>

PNEUMATIC ROTARY ACTUATOR 3 POSITION
MORE >>

SCOTCH & YOKE ACTUATOR
MORE >>
