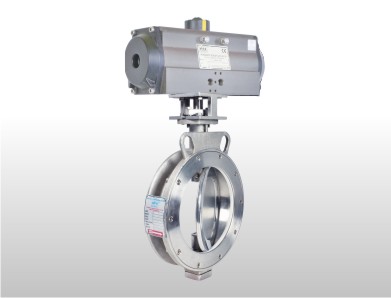

PNEUMATIC BUTTERFLY VALVE

Pneumatic Rotary Actuator Operated High Performance Butterfly Valve (Spherical Disc Valve) 150# & 300#

Aira

SPECIFICATIONS____________________________________________
Model   SDV
Design   Wafer Type High Performance Double Eccentric Disc Design Butterfly Valves
Body : ASTM A 216 Gr. WCB / A 351 Gr. CF8 / CF8M
Size Range   1.1/2" to 36"
Shaft   AISI 410 / 304 /316
Disc.   ASTM A 351 Gr. CF8 / CF8M
Seat : PTFE (EPDM / Metal to Metal available on Request)
Temprature : 180°C (Soft Seating), 600°C (Metal to Metal)
Pressure rating : PN 10 / PN 16 / PN 25
End Connection : As Per ANSI B 16.5 Class 150,Class 300
