PNEUMATIC CONTROL VALVE

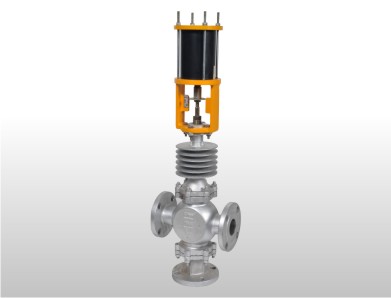

2/2 – 3/2 Way Pneumatic Cylinder Operated Control Valve (450° C)

Aira

SPECIFICATIONS__________________________________
ACTUATOR DETAILS :
Actuator Type   Single Acting Cylinder
Barrel   Aluminium
Shaft   EN 8 Hard Chrome Plated
Seals   Buna – N
End Cover   Cast Iron
Working Pressure   4.5 Kg/cm²

VALVE DETAILS :
Model : PHC
Type of Valve : Globe Type 2/2 Way – 3/2 Way
Size Range : 1/2″ to 4″
Body : WCB
Bonnet : WCB
Pressure : up to 7 Bar
Temperature : up to 450°C (max)
Leakage Class : Class VI
End Connection   As Per ASME B16.5 Class 150
