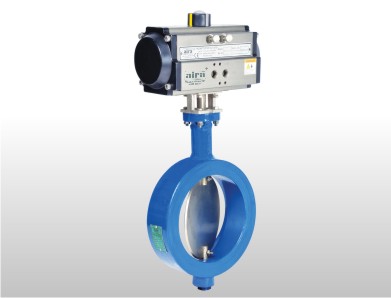

PNEUMATIC BUTTERFLY VALVE

Pneumatic Rotary Actuator Operated Wafer Type Damper Valve

Aira

SPECIFICATIONS____________________________________________
Model : DP
Design   Short Wafer Type Damper Valve with Metal to Metal Seat
Body : Gry Iron / Cast Steel / Ductile Iron / CF8 / CF8M
Size Range   1.1/2" to 20"
Shaft   AISI 410 / AISI 304 / AISI 316 / AISI 316L
Disc.   WCB / CF8 / CF8M
Seat : Metal to Metal
Seat Leakage : 5% Leakage of full flow
Temprature : -25°C to 400°C (Up to 600° C Depending MOC)
Pressure rating : PN 6 ( Maximum)
End Connection : Wafer Sandwiched (Lug type on request)
