PNEUMATIC CONTROL VALVE

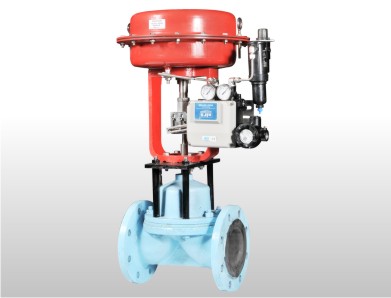

Pneumatic Diaphragm Actuator Operated Rubber Lined Diaphragm Valve

Aira

SPECIFICATIONS__________________________________
ACTUATOR DETAILS :
Body   M.S. Pressed
Actuator Type   Diaphragm Single Acting
Actuator Action   Direct / Reverse Acting, Normally Open / Normally Close
Operating Pressure   1.4 to 4.5 BAR

VALVE DETAILS :
Size Range : 1/2″ to 8″
Body : Cast Iron / Cast Steel / S.S.304 / S.S.316
Lining Material : Ebonite/EPDM/Glass/PFA
Diaphragm : Neoprene / Teflon Backed with Neoprene / Butyl / Viton /
EPDM / Hyplon / Nitrile
Pressure : up to 5 Bar
Testing Standard : BS 6755 – Part I
Temperature : -30°C to 80°C
Leakage Rate   As Per ANSI B 16.104 Class VI(100% Leak Tight)
