SOLENOID VALVE

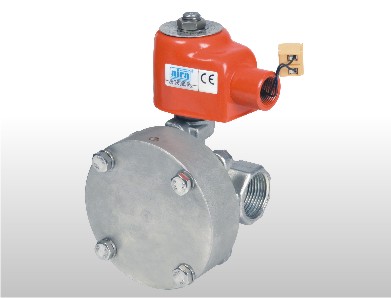

2/2 Way Pilot Operated Piston Type High Pressure (110 BAR) Solenoid Valve

Aira

SPECIFICATIONS__________________________________
Model : HPQX
Body : CF8 / CF8M
Size Range : 1/4" to 2 "
Piston : S.S.304 / S.S.316
Seat : PTFE
Temprature : -5°C to 85°C (Up to 120°C On Request)
Pressure : 2 to 110 Bar
Valve Position : Normally Close
Coil Voltage : 12V, 24V, 48V, 110V, 230V, AC/DC
Coil Insulation : "H" Class
Coil Rating : Continuous Rated
Media : Air,Water,Hot Water, LD Oil, Corrosive Media
Ends : Screwed End / Flanged End 150 Class / Triclover End
.
