PNEUMATIC BUTTERFLY VALVE

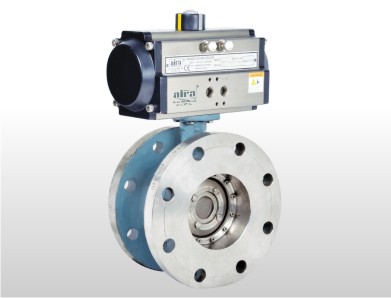

Pneumatic Rotary Actuator Operated Double Eccentric Off – Set Double Flange Butterfly Valve 150#

Aira

SPECIFICATIONS____________________________________________
Model   BOD
Design   Eccentric Design Off Set Disc Double Flange Fire Safe Design Butterfly Valve
Body : Cast Iron / Ductile Iron / WCB / CF8 / CF8M
Size Range   2.1/2" To 48"
Shaft   S.S. 304 / 316 / 410
Disc.   Ductile Iron / WCB / CF8 / CF8M
Seat : NBR/EPDM/VITON/PTFE/RPTFE/TFM
Leakage : Class VI as Per ANSI B 16,B 16.104
Temprature : up to 220° C
Pressure rating : PN 10 / PN 16 / PN 25
End Connection : As Per ASME B 16.5 Class 150
